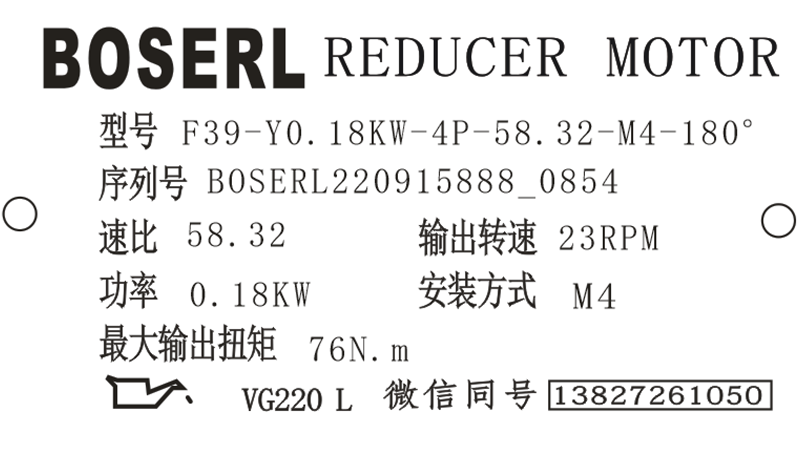

F39減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F39減速器選型樣本。

F39-Y0.18KW-4P-58.32-M4-180°

F：系列代號

39：減速機規格代號

Y：電機

0.18KW：電機功率

4P：電機級數

58.32：減速機傳動比

M4：減速機安裝位置

180°：接線盒位置

F39減速器上的圖標說明：下表列出安裝位置章節中所采用的圖標及其含義

F39減速器安裝所需工具以及材料：

F39減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近！同時還要檢查，注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。F39減速器在出廠時加注了相應油量的潤滑油。由于安裝位置的原因，從油位螺栓觀察，油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時，潤滑油加注油量和透氣閥的位置必須作相應的調整。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將F39減速器的安裝位置改變?yōu)镸5或M6，或者M5、M6之間的安裝位置，請您咨詢BOSERL公司客戶服務部。若要將F39減速器改裝成M2或M3時，請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕，請您在F39減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須＜109Ω。電化學腐蝕可能發生在不同的金屬物質之間，如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片！還要通過電機上的接地螺栓對F39減速器箱體進行連接接地。F系列減速機

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件（墊片、間隔環）、輸入/輸出元件的緊固裝置、 潤滑油（F39減速器出廠已經自帶潤滑油）、用于緊固螺栓的密封膠（針對帶對中軸肩的輸入軸裝置AD/ZR），所有的標準部件均不是供貨范圍。

F39減速器故障售后服務統籌：

F39減速器異常、無規律的運轉噪音：軸承損壞，檢查潤滑油參見“F39減速器說明書的檢查/維護”章節，更換軸承；齒輪有損失，請向客戶服務部咨詢；潤滑油中有異物，檢查潤滑油參見“F39減速器說明書的檢查/維護”章節；傳動裝置停車，請向客戶服務部咨詢；齒輪減速電機

F39減速器潤滑油泄露：F39減速器密封面密封性能不良，擰緊F39減速器蓋上的螺釘并觀察F39減速器。如果潤滑油繼續泄露，請向客戶服務部咨詢；密封圈損壞，請向客戶服務部咨詢；F39減速器透氣閥失效，給F39減速器透氣參見“F39減速器說明書的安裝位置”章節。

F39減速器潤滑油從透氣閥處滲出：潤滑油太多，調節油量參見“F39減速器說明書的檢查/維護”章節；F39減速器安裝位置錯誤，正確安裝透氣閥參見“F39減速器說明書的安裝位置”章節，調節油位參見“F39減速器說明書的檢查/維護”章節。

F39減速器電機或輸入軸轉動，而輸出軸不轉：F39減速器中的軸輪轂聯接斷裂，將F39減速器或減速電機送來我司修理。

在磨合期（48小時的運轉時間內）油封可能出現短期內的滲油或油脂的現象。對F39減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障，請與BOSERL公司客戶服務部聯系。平行軸斜齒輪減速機

F39減速器型號：

XDF37-Y0.12KW，XDF37-Y0.18KW，XDF37-Y0.25KW，XDF37-Y0.37KW，XDF37-Y0.55KW，XDF37-Y0.75KW，XDF37-Y1.1KW，XDF37-Y1.5KW，XDF37-Y100M4，XDF37-Y2.2KW，XDF37-Y3KW，XDF37-Y63M4，XDF37-Y71M4，XDF37-Y80M4，XDF37-Y90M4，XDF37-YB100M4，XDF37-YB63M4，XDF37-YB71M4，XDF37-YB80M4，XDF37-YB90M4，XDF37-YDP100M4，XDF37-YDP63M4，XDF37-YDP71M4，XDF37-YDP80M4，XDF37-YDP90M4，XDF37-YE100M4，XDF37-YE63M4，XDF37-YE71M4，XDF37-YE80M4，XDF37-YE90M4，XDF37-YEJ100M4，XDF37-YEJ63M4，XDF37-YEJ71M4，XDF37-YEJ80M4，XDF37-YEJ90M4，XDF37-YEJB100M4，XDF37-YEJB63M4，XDF37-YEJB71M4，XDF37-YEJB80M4，XDF37-YEJB90M4，XDF37-YP100M4，XDF37-YP63M4，XDF37-YP71M4，XDF37-YP80M4，XDF37-YP90M4，XDF37-YPB100M4，XDF37-YPB63M4，XDF37-YPB71M4，XDF37-YPB80M4，XDF37-YPB90M4，XDF37-YPE100M4，XDF37-YPE63M4，XDF37-YPE71M4，XDF37-YPE80M4，XDF37-YPE90M4，XDF37-YS100M4，XDF37-YS63M4，XDF37-YS71M4，XDF37-YS80M4，XDF37-YS90M4，XDF37-YVB100M4，XDF37-YVB63M4，XDF37-YVB71M4，XDF37-YVB80M4，XDF37-YVB90M4，XDF37-YVP100M4，XDF37-YVP63M4，XDF37-YVP71M4，XDF37-YVP80M4，XDF37-YVP90M4，XDF37-YVPEJ100M4，XDF37-YVPEJ63M4，XDF37-YVPEJ71M4，XDF37-YVPEJ80M4，XDF37-YVPEJ90M4，JCF37-Y0.12KW，JCF37-Y0.18KW，JCF37-Y0.25KW，JCF37-Y0.37KW，JCF37-Y0.55KW，JCF37-Y0.75KW，JCF37-Y1.1KW，JCF37-Y1.5KW，JCF37-Y100M4，JCF37-Y2.2KW，JCF37-Y3KW，JCF37-Y63M4，JCF37-Y71M4，JCF37-Y80M4，JCF37-Y90M4，JCF37-YB100M4，JCF37-YB63M4，JCF37-YB71M4，JCF37-YB80M4，JCF37-YB90M4，JCF37-YDP100M4，JCF37-YDP63M4，JCF37-YDP71M4，JCF37-YDP80M4，JCF37-YDP90M4，JCF37-YE100M4，JCF37-YE63M4，JCF37-YE71M4，JCF37-YE80M4，JCF37-YE90M4，JCF37-YEJ100M4，JCF37-YEJ63M4，JCF37-YEJ71M4，JCF37-YEJ80M4，JCF37-YEJ90M4，JCF37-YEJB100M4，JCF37-YEJB63M4，JCF37-YEJB71M4，JCF37-YEJB80M4，JCF37-YEJB90M4，JCF37-YP100M4，JCF37-YP63M4，JCF37-YP71M4，JCF37-YP80M4，JCF37-YP90M4，JCF37-YPB100M4，JCF37-YPB63M4，JCF37-YPB71M4，JCF37-YPB80M4，JCF37-YPB90M4，JCF37-YPE100M4，JCF37-YPE63M4，JCF37-YPE71M4，JCF37-YPE80M4，JCF37-YPE90M4，JCF37-YS100M4，JCF37-YS63M4，JCF37-YS71M4，JCF37-YS80M4，JCF37-YS90M4，JCF37-YVB100M4，JCF37-YVB63M4，JCF37-YVB71M4，JCF37-YVB80M4，JCF37-YVB90M4，JCF37-YVP100M4，JCF37-YVP63M4，JCF37-YVP71M4，JCF37-YVP80M4，JCF37-YVP90M4，JCF37-YVPEJ100M4，JCF37-YVPEJ63M4，JCF37-YVPEJ71M4，JCF37-YVPEJ80M4，JCF37-YVPEJ90M4，F(xiàn)W37-Y0.12KW，F(xiàn)W37-Y0.18KW，F(xiàn)W37-Y0.25KW，F(xiàn)W37-Y0.37KW，F(xiàn)W37-Y0.55KW，F(xiàn)W37-Y0.75KW，F(xiàn)W37-Y1.1KW，F(xiàn)W37-Y1.5KW，F(xiàn)W37-Y100M4，F(xiàn)W37-Y2.2KW，F(xiàn)W37-Y3KW，F(xiàn)W37-Y63M4，F(xiàn)W37-Y71M4，F(xiàn)W37-Y80M4，F(xiàn)W37-Y90M4，F(xiàn)W37-YB100M4，F(xiàn)W37-YB63M4，F(xiàn)W37-YB71M4，F(xiàn)W37-YB80M4，F(xiàn)W37-YB90M4，F(xiàn)W37-YDP100M4，F(xiàn)W37-YDP63M4，F(xiàn)W37-YDP71M4，F(xiàn)W37-YDP80M4，F(xiàn)W37-YDP90M4，F(xiàn)W37-YE100M4，F(xiàn)W37-YE63M4，F(xiàn)W37-YE71M4，F(xiàn)W37-YE80M4，F(xiàn)W37-YE90M4，F(xiàn)W37-YEJ100M4，F(xiàn)W37-YEJ63M4，F(xiàn)W37-YEJ71M4，F(xiàn)W37-YEJ80M4，F(xiàn)W37-YEJ90M4，F(xiàn)W37-YEJB100M4，F(xiàn)W37-YEJB63M4，F(xiàn)W37-YEJB71M4，F(xiàn)W37-YEJB80M4，F(xiàn)W37-YEJB90M4，F(xiàn)W37-YP100M4，F(xiàn)W37-YP63M4，F(xiàn)W37-YP71M4，F(xiàn)W37-YP80M4，F(xiàn)W37-YP90M4，F(xiàn)W37-YPB100M4，F(xiàn)W37-YPB63M4，F(xiàn)W37-YPB71M4，F(xiàn)W37-YPB80M4，F(xiàn)W37-YPB90M4，F(xiàn)W37-YPE100M4，F(xiàn)W37-YPE63M4，F(xiàn)W37-YPE71M4，F(xiàn)W37-YPE80M4，F(xiàn)W37-YPE90M4，F(xiàn)W37-YS100M4，F(xiàn)W37-YS63M4，F(xiàn)W37-YS71M4，F(xiàn)W37-YS80M4，F(xiàn)W37-YS90M4，F(xiàn)W37-YVB100M4，F(xiàn)W37-YVB63M4，F(xiàn)W37-YVB71M4，F(xiàn)W37-YVB80M4，F(xiàn)W37-YVB90M4，F(xiàn)W37-YVP100M4，F(xiàn)W37-YVP63M4，F(xiàn)W37-YVP71M4，F(xiàn)W37-YVP80M4，F(xiàn)W37-YVP90M4，F(xiàn)W37-YVPEJ100M4，F(xiàn)W37-YVPEJ63M4，F(xiàn)W37-YVPEJ71M4，F(xiàn)W37-YVPEJ80M4，F(xiàn)W37-YVPEJ90M4，YQF37-Y0.12KW，YQF37-Y0.18KW，YQF37-Y0.25KW，YQF37-Y0.37KW，YQF37-Y0.55KW，YQF37-Y0.75KW，YQF37-Y1.1KW，YQF37-Y1.5KW，YQF37-Y100M4，YQF37-Y2.2KW，YQF37-Y3KW，YQF37-Y63M4，YQF37-Y71M4，YQF37-Y80M4，YQF37-Y90M4，YQF37-YB100M4，YQF37-YB63M4，YQF37-YB71M4，YQF37-YB80M4，YQF37-YB90M4，YQF37-YDP100M4，YQF37-YDP63M4，YQF37-YDP71M4，YQF37-YDP80M4，YQF37-YDP90M4，YQF37-YE100M4，YQF37-YE63M4，YQF37-YE71M4，YQF37-YE80M4，YQF37-YE90M4，YQF37-YEJ100M4，YQF37-YEJ63M4，YQF37-YEJ71M4，YQF37-YEJ80M4，YQF37-YEJ90M4，YQF37-YEJB100M4，YQF37-YEJB63M4，YQF37-YEJB71M4，YQF37-YEJB80M4，YQF37-YEJB90M4，YQF37-YP100M4，YQF37-YP63M4，YQF37-YP71M4，YQF37-YP80M4，YQF37-YP90M4，YQF37-YPB100M4，YQF37-YPB63M4，YQF37-YPB71M4，YQF37-YPB80M4，YQF37-YPB90M4，YQF37-YPE100M4，YQF37-YPE63M4，YQF37-YPE71M4，YQF37-YPE80M4，YQF37-YPE90M4，YQF37-YS100M4，YQF37-YS63M4，YQF37-YS71M4，YQF37-YS80M4，YQF37-YS90M4，YQF37-YVB100M4，YQF37-YVB63M4，YQF37-YVB71M4，YQF37-YVB80M4，YQF37-YVB90M4，YQF37-YVP100M4，YQF37-YVP63M4，YQF37-YVP71M4，YQF37-YVP80M4，YQF37-YVP90M4，YQF37-YVPEJ100M4，YQF37-YVPEJ63M4，YQF37-YVPEJ71M4，YQF37-YVPEJ80M4，YQF37-YVPEJ90M4，F(xiàn)39-Y0.12KW，F(xiàn)39-Y0.18KW，F(xiàn)39-Y0.25KW，F(xiàn)39-Y0.37KW，F(xiàn)39-Y0.55KW，F(xiàn)39-Y0.75KW，F(xiàn)39-Y1.1KW，F(xiàn)39-Y1.5KW，F(xiàn)39-Y100M4，F(xiàn)39-Y2.2KW，F(xiàn)39-Y3KW，F(xiàn)39-Y63M4，F(xiàn)39-Y71M4，F(xiàn)39-Y80M4，F(xiàn)39-Y90M4，F(xiàn)39-YB100M4，F(xiàn)39-YB63M4，F(xiàn)39-YB71M4，F(xiàn)39-YB80M4，F(xiàn)39-YB90M4，F(xiàn)39-YDP100M4，F(xiàn)39-YDP63M4，F(xiàn)39-YDP71M4，F(xiàn)39-YDP80M4，F(xiàn)39-YDP90M4，F(xiàn)39-YE100M4，F(xiàn)39-YE63M4，F(xiàn)39-YE71M4，F(xiàn)39-YE80M4，F(xiàn)39-YE90M4，F(xiàn)39-YEJ100M4，F(xiàn)39-YEJ63M4，F(xiàn)39-YEJ71M4，F(xiàn)39-YEJ80M4，F(xiàn)39-YEJ90M4，F(xiàn)39-YEJB100M4，F(xiàn)39-YEJB63M4，F(xiàn)39-YEJB71M4，F(xiàn)39-YEJB80M4，F(xiàn)39-YEJB90M4，F(xiàn)39-YP100M4，F(xiàn)39-YP63M4，F(xiàn)39-YP71M4，F(xiàn)39-YP80M4，F(xiàn)39-YP90M4，F(xiàn)39-YPB100M4，F(xiàn)39-YPB63M4，F(xiàn)39-YPB71M4，F(xiàn)39-YPB80M4，F(xiàn)39-YPB90M4，F(xiàn)39-YPE100M4，F(xiàn)39-YPE63M4，F(xiàn)39-YPE71M4，F(xiàn)39-YPE80M4，F(xiàn)39-YPE90M4，F(xiàn)39-YS100M4，F(xiàn)39-YS63M4，F(xiàn)39-YS71M4，F(xiàn)39-YS80M4，F(xiàn)39-YS90M4，F(xiàn)39-YVB100M4，F(xiàn)39-YVB63M4，F(xiàn)39-YVB71M4，F(xiàn)39-YVB80M4，F(xiàn)39-YVB90M4，F(xiàn)39-YVP100M4，F(xiàn)39-YVP63M4，F(xiàn)39-YVP71M4，F(xiàn)39-YVP80M4，F(xiàn)39-YVP90M4，F(xiàn)39-YVPEJ100M4，F(xiàn)39-YVPEJ63M4，F(xiàn)39-YVPEJ71M4，F(xiàn)39-YVPEJ80M4，F(xiàn)39-YVPEJ90M4，F(xiàn)37SF80，F(xiàn)37SF90，F(xiàn)37SF100，F(xiàn)37SF112，F(xiàn)37SF115，F(xiàn)37SF140，F(xiàn)37SF160，F(xiàn)37SF190。

F39減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.91jobs.cn/product/list-fxiliejiansuji-cn.html
