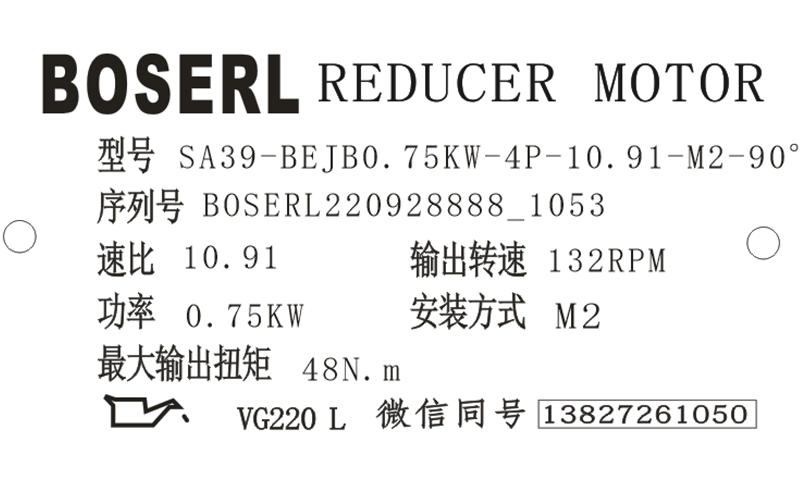

SA39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA39減速機選型樣本。

SA39-BEJB0.75KW-4P-10.91-M2-90°

SA：系列代號

39：減速機規格代號

BEJB：電機

0.75KW：電機功率

4P：電機級數

10.91：減速機傳動比

M2：減速機安裝位置

90°：接線盒位置

SA39減速機扭力臂安裝：

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為SA39減速機的扭力臂安裝示意圖：兩面均安裝支架。齒輪減速電機

SA39減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將SA39減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。自鎖減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。伺服電機連接減速機

SA39減速機型號：

WSA37-Y0.12KW，WSA37-Y0.18KW，WSA37-Y0.25KW，WSA37-Y0.37KW，WSA37-Y0.55KW，WSA37-Y0.75KW，WSA37-Y1.1KW，WSA37-Y1.5KW，WSA37-Y63M4，WSA37-Y71M4，WSA37-Y80M4，WSA37-Y90M4，WSA37-YB63M4，WSA37-YB71M4，WSA37-YB80M4，WSA37-YB90M4，WSA37-YDP63M4，WSA37-YDP71M4，WSA37-YDP80M4，WSA37-YDP90M4，WSA37-YE63M4，WSA37-YE71M4，WSA37-YE80M4，WSA37-YE90M4，WSA37-YEJ63M4，WSA37-YEJ71M4，WSA37-YEJ80M4，WSA37-YEJ90M4，WSA37-YEJB63M4，WSA37-YEJB71M4，WSA37-YEJB80M4，WSA37-YEJB90M4，WSA37-YP63M4，WSA37-YP71M4，WSA37-YP80M4，WSA37-YP90M4，WSA37-YPB63M4，WSA37-YPB71M4，WSA37-YPB80M4，WSA37-YPB90M4，WSA37-YPE63M4，WSA37-YPE71M4，WSA37-YPE80M4，WSA37-YPE90M4，WSA37-YS63M4，WSA37-YS71M4，WSA37-YS80M4，WSA37-YS90M4，WSA37-YVB63M4，WSA37-YVB71M4，WSA37-YVB80M4，WSA37-YVB90M4，WSA37-YVP63M4，WSA37-YVP71M4，WSA37-YVP80M4，WSA37-YVP90M4，WSA37-YVPEJ63M4，WSA37-YVPEJ71M4，WSA37-YVPEJ80M4，WSA37-YVPEJ90M4，NSA37-Y0.12KW，NSA37-Y0.18KW，NSA37-Y0.25KW，NSA37-Y0.37KW，NSA37-Y0.55KW，NSA37-Y0.75KW，NSA37-Y1.1KW，NSA37-Y1.5KW，NSA37-Y63M4，NSA37-Y71M4，NSA37-Y80M4，NSA37-Y90M4，NSA37-YB63M4，NSA37-YB71M4，NSA37-YB80M4，NSA37-YB90M4，NSA37-YDP63M4，NSA37-YDP71M4，NSA37-YDP80M4，NSA37-YDP90M4，NSA37-YE63M4，NSA37-YE71M4，NSA37-YE80M4，NSA37-YE90M4，NSA37-YEJ63M4，NSA37-YEJ71M4，NSA37-YEJ80M4，NSA37-YEJ90M4，NSA37-YEJB63M4，NSA37-YEJB71M4，NSA37-YEJB80M4，NSA37-YEJB90M4，NSA37-YP63M4，NSA37-YP71M4，NSA37-YP80M4，NSA37-YP90M4，NSA37-YPB63M4，NSA37-YPB71M4，NSA37-YPB80M4，NSA37-YPB90M4，NSA37-YPE63M4，NSA37-YPE71M4，NSA37-YPE80M4，NSA37-YPE90M4，NSA37-YS63M4，NSA37-YS71M4，NSA37-YS80M4，NSA37-YS90M4，NSA37-YVB63M4，NSA37-YVB71M4，NSA37-YVB80M4，NSA37-YVB90M4，NSA37-YVP63M4，NSA37-YVP71M4，NSA37-YVP80M4，NSA37-YVP90M4，NSA37-YVPEJ63M4，NSA37-YVPEJ71M4，NSA37-YVPEJ80M4，NSA37-YVPEJ90M4，ASA37-Y0.12KW，ASA37-Y0.18KW，ASA37-Y0.25KW，ASA37-Y0.37KW，ASA37-Y0.55KW，ASA37-Y0.75KW，ASA37-Y1.1KW，ASA37-Y1.5KW，ASA37-Y63M4，ASA37-Y71M4，ASA37-Y80M4，ASA37-Y90M4，ASA37-YB63M4，ASA37-YB71M4，ASA37-YB80M4，ASA37-YB90M4，ASA37-YDP63M4，ASA37-YDP71M4，ASA37-YDP80M4，ASA37-YDP90M4，ASA37-YE63M4，ASA37-YE71M4，ASA37-YE80M4，ASA37-YE90M4，ASA37-YEJ63M4，ASA37-YEJ71M4，ASA37-YEJ80M4，ASA37-YEJ90M4，ASA37-YEJB63M4，ASA37-YEJB71M4，ASA37-YEJB80M4，ASA37-YEJB90M4，ASA37-YP63M4，ASA37-YP71M4，ASA37-YP80M4，ASA37-YP90M4，ASA37-YPB63M4，ASA37-YPB71M4，ASA37-YPB80M4，ASA37-YPB90M4，ASA37-YPE63M4，ASA37-YPE71M4，ASA37-YPE80M4，ASA37-YPE90M4，ASA37-YS63M4，ASA37-YS71M4，ASA37-YS80M4，ASA37-YS90M4，ASA37-YVB63M4，ASA37-YVB71M4，ASA37-YVB80M4，ASA37-YVB90M4，ASA37-YVP63M4，ASA37-YVP71M4，ASA37-YVP80M4，ASA37-YVP90M4，ASA37-YVPEJ63M4，ASA37-YVPEJ71M4，ASA37-YVPEJ80M4，ASA37-YVPEJ90M4，SSA37-Y0.12KW，SSA37-Y0.18KW，SSA37-Y0.25KW，SSA37-Y0.37KW，SSA37-Y0.55KW，SSA37-Y0.75KW，SSA37-Y1.1KW，SSA37-Y1.5KW，SSA37-Y63M4，SSA37-Y71M4，SSA37-Y80M4，SSA37-Y90M4，SSA37-YB63M4，SSA37-YB71M4，SSA37-YB80M4，SSA37-YB90M4，SSA37-YDP63M4，SSA37-YDP71M4，SSA37-YDP80M4，SSA37-YDP90M4，SSA37-YE63M4，SSA37-YE71M4，SSA37-YE80M4，SSA37-YE90M4，SSA37-YEJ63M4，SSA37-YEJ71M4，SSA37-YEJ80M4，SSA37-YEJ90M4，SSA37-YEJB63M4，SSA37-YEJB71M4，SSA37-YEJB80M4，SSA37-YEJB90M4，SSA37-YP63M4，SSA37-YP71M4，SSA37-YP80M4，SSA37-YP90M4，SSA37-YPB63M4，SSA37-YPB71M4，SSA37-YPB80M4，SSA37-YPB90M4，SSA37-YPE63M4，SSA37-YPE71M4，SSA37-YPE80M4，SSA37-YPE90M4，SSA37-YS63M4，SSA37-YS71M4，SSA37-YS80M4，SSA37-YS90M4，SSA37-YVB63M4，SSA37-YVB71M4，SSA37-YVB80M4，SSA37-YVB90M4，SSA37-YVP63M4，SSA37-YVP71M4，SSA37-YVP80M4，SSA37-YVP90M4，SSA37-YVPEJ63M4，SSA37-YVPEJ71M4，SSA37-YVPEJ80M4，SSA37-YVPEJ90M4，GSA39-Y0.12KW，GSA39-Y0.18KW，GSA39-Y0.25KW，GSA39-Y0.37KW，GSA39-Y0.55KW，GSA39-Y0.75KW，GSA39-Y1.1KW，GSA39-Y1.5KW，GSA39-Y63M4，GSA39-Y71M4，GSA39-Y80M4，GSA39-Y90M4，GSA39-YB63M4，GSA39-YB71M4，GSA39-YB80M4，GSA39-YB90M4，GSA39-YDP63M4，GSA39-YDP71M4，GSA39-YDP80M4，GSA39-YDP90M4，GSA39-YE63M4，GSA39-YE71M4，GSA39-YE80M4，GSA39-YE90M4，GSA39-YEJ63M4，GSA39-YEJ71M4，GSA39-YEJ80M4，GSA39-YEJ90M4，GSA39-YEJB63M4，GSA39-YEJB71M4，GSA39-YEJB80M4，GSA39-YEJB90M4，GSA39-YP63M4，GSA39-YP71M4，GSA39-YP80M4，GSA39-YP90M4，GSA39-YPB63M4，GSA39-YPB71M4，GSA39-YPB80M4，GSA39-YPB90M4，GSA39-YPE63M4，GSA39-YPE71M4，GSA39-YPE80M4，GSA39-YPE90M4，GSA39-YS63M4，GSA39-YS71M4，GSA39-YS80M4，GSA39-YS90M4，GSA39-YVB63M4，GSA39-YVB71M4，GSA39-YVB80M4，GSA39-YVB90M4，GSA39-YVP63M4，GSA39-YVP71M4，GSA39-YVP80M4，GSA39-YVP90M4，GSA39-YVPEJ63M4，GSA39-YVPEJ71M4，GSA39-YVPEJ80M4，GSA39-YVPEJ90M4。

SA39減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.91jobs.cn/product/list-saxiliejiansuji-cn.html

推薦類似型號：S39減速機
