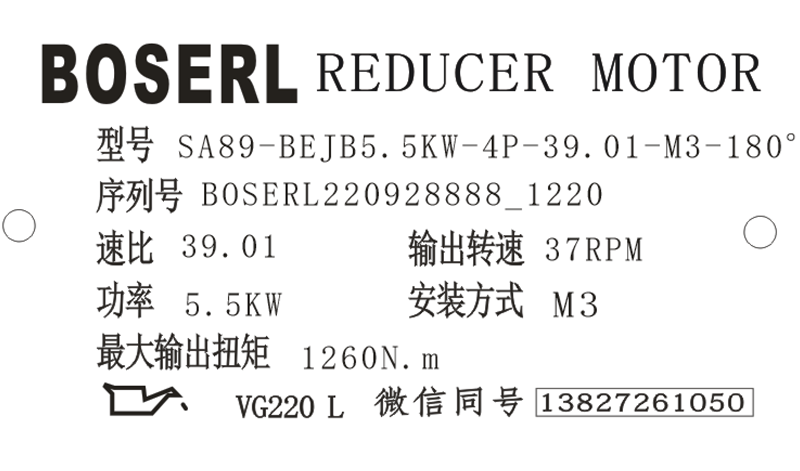

SA89減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SA89減速機選型樣本。

SA89-BEJB5.5KW-4P-39.01-M3-180°

SA：系列代號

89：減速機規格代號

BEJB：電機

5.5KW：電機功率

4P：電機級數

39.01：減速機傳動比

M3：減速機安裝位置

180°：接線盒位置

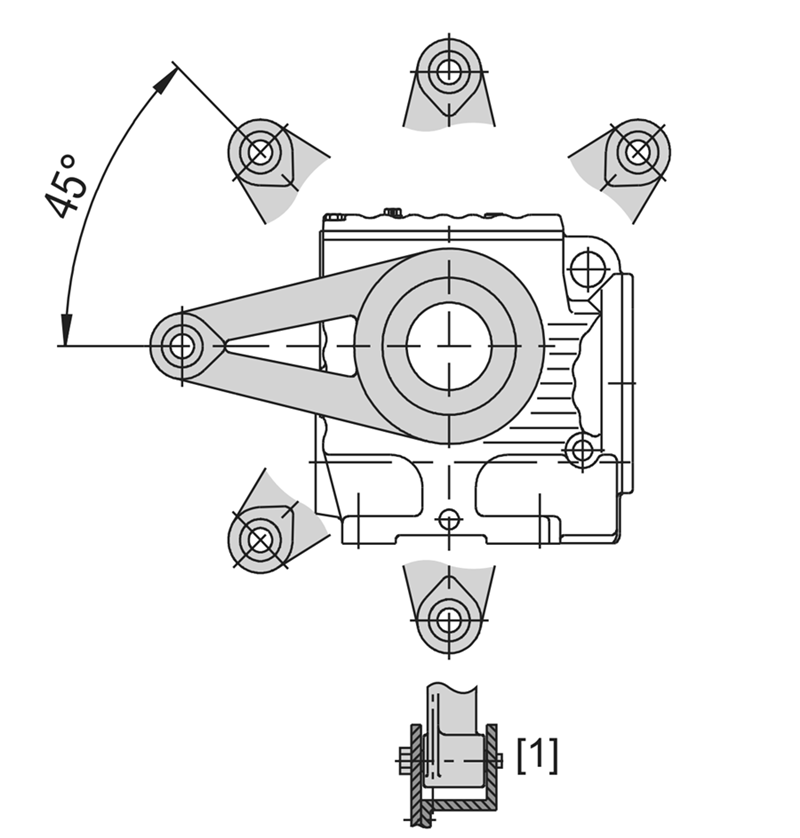

SA89減速機扭力臂安裝：

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為SA89減速機的扭力臂安裝示意圖：兩面均安裝支架。齒輪減速電機

SA89減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將SA89減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。自鎖減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。伺服電機連接減速機

SA89減速機型號：

SSA87-Y0.55KW，SSA87-Y0.75KW，SSA87-Y1.1KW，SSA87-Y1.5KW，SSA87-Y100M4，SSA87-Y112M4，SSA87-Y11KW，SSA87-Y132M4，SSA87-Y15KW，SSA87-Y160M4，SSA87-Y2.2KW，SSA87-Y3KW，SSA87-Y4KW，SSA87-Y5.5KW，SSA87-Y7.5KW，SSA87-Y71M4，SSA87-Y80M4，SSA87-Y90M4，SSA87-YB100M4，SSA87-YB112M4，SSA87-YB132M4，SSA87-YB160M4，SSA87-YB71M4，SSA87-YB80M4，SSA87-YB90M4，SSA87-YDP100M4，SSA87-YDP112M4，SSA87-YDP132M4，SSA87-YDP160M4，SSA87-YDP71M4，SSA87-YDP80M4，SSA87-YDP90M4，SSA87-YE100M4，SSA87-YE112M4，SSA87-YE132M4，SSA87-YE160M4，SSA87-YE71M4，SSA87-YE80M4，SSA87-YE90M4，SSA87-YEJ100M4，SSA87-YEJ112M4，SSA87-YEJ132M4，SSA87-YEJ160M4，SSA87-YEJ71M4，SSA87-YEJ80M4，SSA87-YEJ90M4，SSA87-YEJB100M4，SSA87-YEJB112M4，SSA87-YEJB132M4，SSA87-YEJB160M4，SSA87-YEJB71M4，SSA87-YEJB80M4，SSA87-YEJB90M4，SSA87-YP100M4，SSA87-YP112M4，SSA87-YP132M4，SSA87-YP160M4，SSA87-YP71M4，SSA87-YP80M4，SSA87-YP90M4，SSA87-YPB100M4，SSA87-YPB112M4，SSA87-YPB132M4，SSA87-YPB160M4，SSA87-YPB71M4，SSA87-YPB80M4，SSA87-YPB90M4，SSA87-YPE100M4，SSA87-YPE112M4，SSA87-YPE132M4，SSA87-YPE160M4，SSA87-YPE71M4，SSA87-YPE80M4，SSA87-YPE90M4，SSA87-YS100M4，SSA87-YS112M4，SSA87-YS132M4，SSA87-YS160M4，SSA87-YS71M4，SSA87-YS80M4，SSA87-YS90M4，SSA87-YVB100M4，SSA87-YVB112M4，SSA87-YVB132M4，SSA87-YVB160M4，SSA87-YVB71M4，SSA87-YVB80M4，SSA87-YVB90M4，SSA87-YVP100M4，SSA87-YVP112M4，SSA87-YVP132M4，SSA87-YVP160M4，SSA87-YVP71M4，SSA87-YVP80M4，SSA87-YVP90M4，SSA87-YVPEJ100M4，SSA87-YVPEJ112M4，SSA87-YVPEJ132M4，SSA87-YVPEJ160M4，SSA87-YVPEJ71M4，SSA87-YVPEJ80M4，SSA87-YVPEJ90M4，NSA87-Y0.55KW，NSA87-Y0.75KW，NSA87-Y1.1KW，NSA87-Y1.5KW，NSA87-Y100M4，NSA87-Y112M4，NSA87-Y11KW，NSA87-Y132M4，NSA87-Y15KW，NSA87-Y160M4，NSA87-Y2.2KW，NSA87-Y3KW，NSA87-Y4KW，NSA87-Y5.5KW，NSA87-Y7.5KW，NSA87-Y71M4，NSA87-Y80M4，NSA87-Y90M4，NSA87-YB100M4，NSA87-YB112M4，NSA87-YB132M4，NSA87-YB160M4，NSA87-YB71M4，NSA87-YB80M4，NSA87-YB90M4，NSA87-YDP100M4，NSA87-YDP112M4，NSA87-YDP132M4，NSA87-YDP160M4，NSA87-YDP71M4，NSA87-YDP80M4，NSA87-YDP90M4，NSA87-YE100M4，NSA87-YE112M4，NSA87-YE132M4，NSA87-YE160M4，NSA87-YE71M4，NSA87-YE80M4，NSA87-YE90M4，NSA87-YEJ100M4，NSA87-YEJ112M4，NSA87-YEJ132M4，NSA87-YEJ160M4，NSA87-YEJ71M4，NSA87-YEJ80M4，NSA87-YEJ90M4，NSA87-YEJB100M4，NSA87-YEJB112M4，NSA87-YEJB132M4，NSA87-YEJB160M4，NSA87-YEJB71M4，NSA87-YEJB80M4，NSA87-YEJB90M4，NSA87-YP100M4，NSA87-YP112M4，NSA87-YP132M4，NSA87-YP160M4，NSA87-YP71M4，NSA87-YP80M4，NSA87-YP90M4，NSA87-YPB100M4，NSA87-YPB112M4，NSA87-YPB132M4，NSA87-YPB160M4，NSA87-YPB71M4，NSA87-YPB80M4，NSA87-YPB90M4，NSA87-YPE100M4，NSA87-YPE112M4，NSA87-YPE132M4，NSA87-YPE160M4，NSA87-YPE71M4，NSA87-YPE80M4，NSA87-YPE90M4，NSA87-YS100M4，NSA87-YS112M4，NSA87-YS132M4，NSA87-YS160M4，NSA87-YS71M4，NSA87-YS80M4，NSA87-YS90M4，NSA87-YVB100M4，NSA87-YVB112M4，NSA87-YVB132M4，NSA87-YVB160M4，NSA87-YVB71M4，NSA87-YVB80M4，NSA87-YVB90M4，NSA87-YVP100M4，NSA87-YVP112M4，NSA87-YVP132M4，NSA87-YVP160M4，NSA87-YVP71M4，NSA87-YVP80M4，NSA87-YVP90M4，NSA87-YVPEJ100M4，NSA87-YVPEJ112M4，NSA87-YVPEJ132M4，NSA87-YVPEJ160M4，NSA87-YVPEJ71M4，NSA87-YVPEJ80M4，NSA87-YVPEJ90M4，WSA87-Y0.55KW，WSA87-Y0.75KW，WSA87-Y1.1KW，WSA87-Y1.5KW，WSA87-Y100M4，WSA87-Y112M4，WSA87-Y11KW，WSA87-Y132M4，WSA87-Y15KW，WSA87-Y160M4，WSA87-Y2.2KW，WSA87-Y3KW，WSA87-Y4KW，WSA87-Y5.5KW，WSA87-Y7.5KW，WSA87-Y71M4，WSA87-Y80M4，WSA87-Y90M4，WSA87-YB100M4，WSA87-YB112M4，WSA87-YB132M4，WSA87-YB160M4，WSA87-YB71M4，WSA87-YB80M4，WSA87-YB90M4，WSA87-YDP100M4，WSA87-YDP112M4，WSA87-YDP132M4，WSA87-YDP160M4，WSA87-YDP71M4，WSA87-YDP80M4，WSA87-YDP90M4，WSA87-YE100M4，WSA87-YE112M4，WSA87-YE132M4，WSA87-YE160M4，WSA87-YE71M4，WSA87-YE80M4，WSA87-YE90M4，WSA87-YEJ100M4，WSA87-YEJ112M4，WSA87-YEJ132M4，WSA87-YEJ160M4，WSA87-YEJ71M4，WSA87-YEJ80M4，WSA87-YEJ90M4，WSA87-YEJB100M4，WSA87-YEJB112M4，WSA87-YEJB132M4，WSA87-YEJB160M4，WSA87-YEJB71M4，WSA87-YEJB80M4，WSA87-YEJB90M4，WSA87-YP100M4，WSA87-YP112M4，WSA87-YP132M4，WSA87-YP160M4，WSA87-YP71M4，WSA87-YP80M4，WSA87-YP90M4，WSA87-YPB100M4，WSA87-YPB112M4，WSA87-YPB132M4，WSA87-YPB160M4，WSA87-YPB71M4，WSA87-YPB80M4，WSA87-YPB90M4，WSA87-YPE100M4，WSA87-YPE112M4，WSA87-YPE132M4，WSA87-YPE160M4，WSA87-YPE71M4，WSA87-YPE80M4，WSA87-YPE90M4，WSA87-YS100M4，WSA87-YS112M4，WSA87-YS132M4，WSA87-YS160M4，WSA87-YS71M4，WSA87-YS80M4，WSA87-YS90M4，WSA87-YVB100M4，WSA87-YVB112M4，WSA87-YVB132M4，WSA87-YVB160M4，WSA87-YVB71M4，WSA87-YVB80M4，WSA87-YVB90M4，WSA87-YVP100M4，WSA87-YVP112M4，WSA87-YVP132M4，WSA87-YVP160M4，WSA87-YVP71M4，WSA87-YVP80M4，WSA87-YVP90M4，WSA87-YVPEJ100M4，WSA87-YVPEJ112M4，WSA87-YVPEJ132M4，WSA87-YVPEJ160M4，WSA87-YVPEJ71M4，WSA87-YVPEJ80M4，WSA87-YVPEJ90M4，ASA87-Y0.55KW，ASA87-Y0.75KW，ASA87-Y1.1KW，ASA87-Y1.5KW，ASA87-Y100M4，ASA87-Y112M4，ASA87-Y11KW，ASA87-Y132M4，ASA87-Y15KW，ASA87-Y160M4，ASA87-Y2.2KW，ASA87-Y3KW，ASA87-Y4KW，ASA87-Y5.5KW，ASA87-Y7.5KW，ASA87-Y71M4，ASA87-Y80M4，ASA87-Y90M4，ASA87-YB100M4，ASA87-YB112M4，ASA87-YB132M4，ASA87-YB160M4，ASA87-YB71M4，ASA87-YB80M4，ASA87-YB90M4，ASA87-YDP100M4，ASA87-YDP112M4，ASA87-YDP132M4，ASA87-YDP160M4，ASA87-YDP71M4，ASA87-YDP80M4，ASA87-YDP90M4，ASA87-YE100M4，ASA87-YE112M4，ASA87-YE132M4，ASA87-YE160M4，ASA87-YE71M4，ASA87-YE80M4，ASA87-YE90M4，ASA87-YEJ100M4，ASA87-YEJ112M4，ASA87-YEJ132M4，ASA87-YEJ160M4，ASA87-YEJ71M4，ASA87-YEJ80M4，ASA87-YEJ90M4，ASA87-YEJB100M4，ASA87-YEJB112M4，ASA87-YEJB132M4，ASA87-YEJB160M4，ASA87-YEJB71M4，ASA87-YEJB80M4，ASA87-YEJB90M4，ASA87-YP100M4，ASA87-YP112M4，ASA87-YP132M4，ASA87-YP160M4，ASA87-YP71M4，ASA87-YP80M4，ASA87-YP90M4，ASA87-YPB100M4，ASA87-YPB112M4，ASA87-YPB132M4，ASA87-YPB160M4，ASA87-YPB71M4，ASA87-YPB80M4，ASA87-YPB90M4，ASA87-YPE100M4，ASA87-YPE112M4，ASA87-YPE132M4，ASA87-YPE160M4，ASA87-YPE71M4，ASA87-YPE80M4，ASA87-YPE90M4，ASA87-YS100M4，ASA87-YS112M4，ASA87-YS132M4，ASA87-YS160M4，ASA87-YS71M4，ASA87-YS80M4，ASA87-YS90M4，ASA87-YVB100M4，ASA87-YVB112M4，ASA87-YVB132M4，ASA87-YVB160M4，ASA87-YVB71M4，ASA87-YVB80M4，ASA87-YVB90M4，ASA87-YVP100M4，ASA87-YVP112M4，ASA87-YVP132M4，ASA87-YVP160M4，ASA87-YVP71M4，ASA87-YVP80M4，ASA87-YVP90M4，ASA87-YVPEJ100M4，ASA87-YVPEJ112M4，ASA87-YVPEJ132M4，ASA87-YVPEJ160M4，ASA87-YVPEJ71M4，ASA87-YVPEJ80M4，ASA87-YVPEJ90M4，GSA89-Y0.55KW，GSA89-Y0.75KW，GSA89-Y1.1KW，GSA89-Y1.5KW，GSA89-Y100M4，GSA89-Y112M4，GSA89-Y11KW，GSA89-Y132M4，GSA89-Y15KW，GSA89-Y160M4，GSA89-Y2.2KW，GSA89-Y3KW，GSA89-Y4KW，GSA89-Y5.5KW，GSA89-Y7.5KW，GSA89-Y71M4，GSA89-Y80M4，GSA89-Y90M4，GSA89-YB100M4，GSA89-YB112M4，GSA89-YB132M4，GSA89-YB160M4，GSA89-YB71M4，GSA89-YB80M4，GSA89-YB90M4，GSA89-YDP100M4，GSA89-YDP112M4，GSA89-YDP132M4，GSA89-YDP160M4，GSA89-YDP71M4，GSA89-YDP80M4，GSA89-YDP90M4，GSA89-YE100M4，GSA89-YE112M4，GSA89-YE132M4，GSA89-YE160M4，GSA89-YE71M4，GSA89-YE80M4，GSA89-YE90M4，GSA89-YEJ100M4，GSA89-YEJ112M4，GSA89-YEJ132M4，GSA89-YEJ160M4，GSA89-YEJ71M4，GSA89-YEJ80M4，GSA89-YEJ90M4，GSA89-YEJB100M4，GSA89-YEJB112M4，GSA89-YEJB132M4，GSA89-YEJB160M4，GSA89-YEJB71M4，GSA89-YEJB80M4，GSA89-YEJB90M4，GSA89-YP100M4，GSA89-YP112M4，GSA89-YP132M4，GSA89-YP160M4，GSA89-YP71M4，GSA89-YP80M4，GSA89-YP90M4，GSA89-YPB100M4，GSA89-YPB112M4，GSA89-YPB132M4，GSA89-YPB160M4，GSA89-YPB71M4，GSA89-YPB80M4，GSA89-YPB90M4，GSA89-YPE100M4，GSA89-YPE112M4，GSA89-YPE132M4，GSA89-YPE160M4，GSA89-YPE71M4，GSA89-YPE80M4，GSA89-YPE90M4，GSA89-YS100M4，GSA89-YS112M4，GSA89-YS132M4，GSA89-YS160M4，GSA89-YS71M4，GSA89-YS80M4，GSA89-YS90M4，GSA89-YVB100M4，GSA89-YVB112M4，GSA89-YVB132M4，GSA89-YVB160M4，GSA89-YVB71M4，GSA89-YVB80M4，GSA89-YVB90M4，GSA89-YVP100M4，GSA89-YVP112M4，GSA89-YVP132M4，GSA89-YVP160M4，GSA89-YVP71M4，GSA89-YVP80M4，GSA89-YVP90M4，GSA89-YVPEJ100M4，GSA89-YVPEJ112M4，GSA89-YVPEJ132M4，GSA89-YVPEJ160M4，GSA89-YVPEJ71M4，GSA89-YVPEJ80M4，GSA89-YVPEJ90M4。

SA89減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.91jobs.cn/product/list-saxiliejiansuji-cn.html

推薦類似型號：S89減速機
